CBSE 2021 Class Class 12 · Physics 3 Marks · Short ✅ Verified

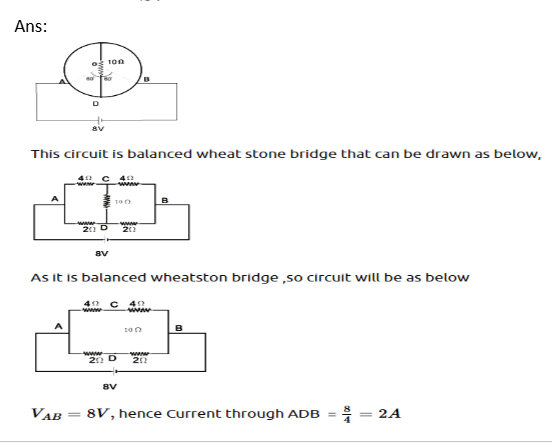

A wire of uniform cross-section and resistance 12 $\Omega$ is bent in the shape of a circle. A resistance of 10 $\Omega$ is connected to diametrically opposite ends C and D. A battery of emf 8 V is connected between A and B. Determine the current flowing through arm AD.
